High Voltage Circuit Breakers
Electric Type
Normal Type Circuit Breaker
Vacuum
Fixed
3
| Quantity: | |
|---|---|

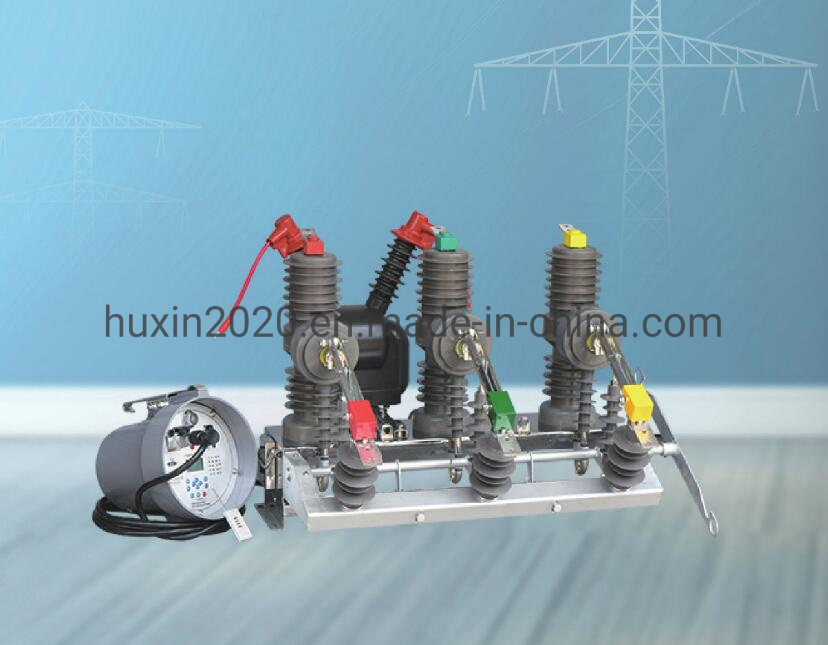

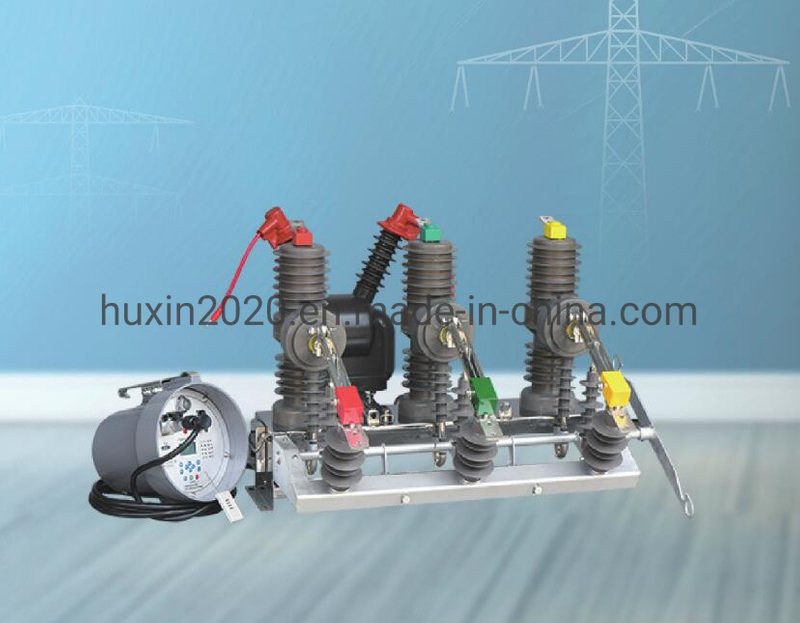

ZW32-12F OUTDOOR HIGH VOLTAGE INTELLIGENT DEMARCATION VACUUM CIRCUIT BREAKER ,ISO9001 PASSED HIGH QUALITY CIRCUIT BREAKER ,CE PROVED CIRCUIT BREAKER

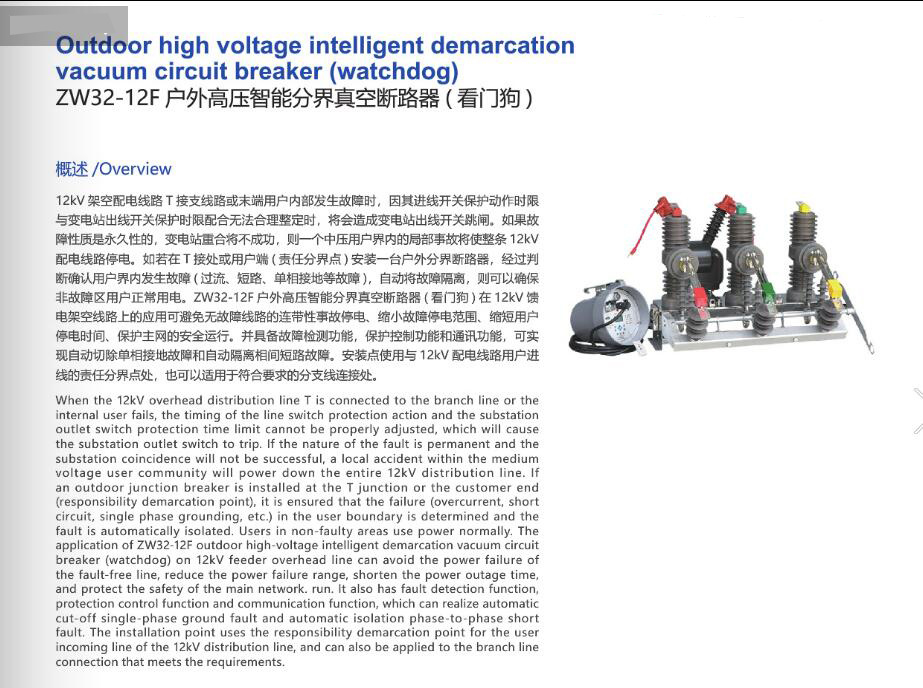

ZW32-12F intelligent outdoor high pressure vacuum circuit breaker is a switch equipment of 3-phase AC 50Hz, rated voltage of 12kV. It applies to open-shut, close-open town or country distribution electric system load current, over load current and short current.
It has new compact design. Hermetic structure, special interrupter package technology, good sealability, dampproof, anti-condensation for high temperature damp area.
Circuit breaker meet the national GB1984 the high-voltage AC breaker and professional standard JB3855 3.6~40.5kV voltage vacuum circuit breaker outdoor exchange and relevant IEC standard.
ZW32-12 is a good solution for industrial enterprise, power plants and substation of electrical equipment for control and protection with, and applies to frequent operation place. Circuit breaker has repeatedly open circuit and fast reclose ability.
ZW32-12F OUTDOOR HIGH VOLTAGE INTELLIGENT DEMARCATION VACUUM CIRCUIT BREAKER ,ISO9001 PASSED HIGH QUALITY CIRCUIT BREAKER ,CE PROVED CIRCUIT BREAKER
ZW32-12F intelligent outdoor high pressure vacuum circuit breaker is a switch equipment of 3-phase AC 50Hz, rated voltage of 12kV. It applies to open-shut, close-open town or country distribution electric system load current, over load current and short current.
It has new compact design. Hermetic structure, special interrupter package technology, good sealability, dampproof, anti-condensation for high temperature damp area.
Circuit breaker meet the national GB1984 the high-voltage AC breaker and professional standard JB3855 3.6~40.5kV voltage vacuum circuit breaker outdoor exchange and relevant IEC standard.
ZW32-12 is a good solution for industrial enterprise, power plants and substation of electrical equipment for control and protection with, and applies to frequent operation place. Circuit breaker has repeatedly open circuit and fast reclose ability.
