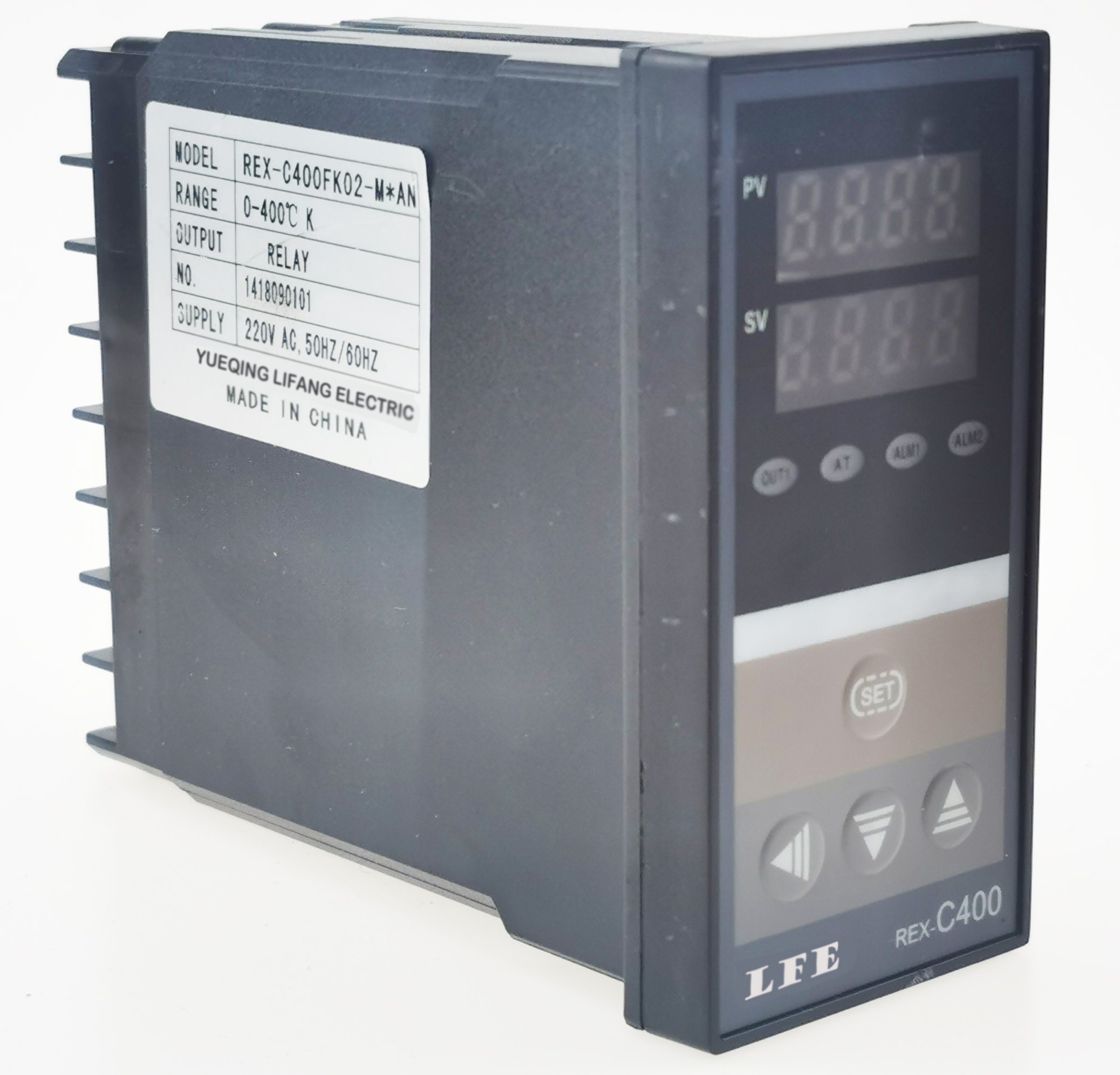

Rex-C400 Digital Pid Temperature Controller, Rex-C400 Digital Display Temperature Controller, CE Proved High Quality Temperature Controller

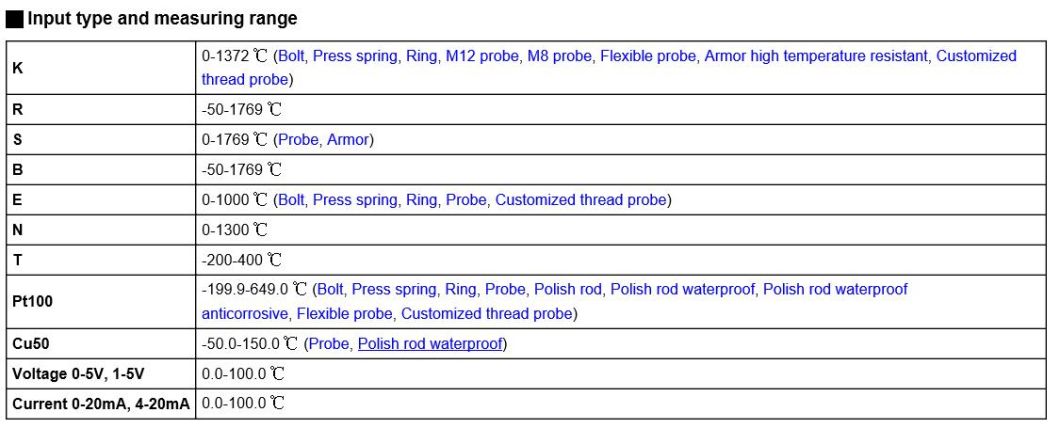

Specifications: Display: Dual display for Celsius (°C) Range: 0-400°C (Only when with the factory K type thermocouple) Thermocouple: Type K Thermo Resistor: PT100, Cu50 Main Output: SSR PID cooling/heating control 1 RELAY alarm: Normal open, capacity 250V/3A AC or 30V/3A DC 6 different Dual Output combinations with: high / low / high deviation / low deviation /interval / out of interval Accuracy: 0.5% Input: Type K Dimension: DIN: 1/16 (48mm x 48mm x 108mm/1.89"x1.89"x4.25") Individually programmable PID control parameters. P, I, d, controlling period, digital filter coefficient, and more Relay control ready to connect Compact design: DIN 1/8 great form-factor to be included/build-in to your product. Input: Type K, or 0-20mA signal. Control output: SSR
