Gn19-12 Indoor High Voltage Disconnector, ISO9001 Passed Indoor Disconnector, CE Proved High Quality Disconnector, Disconnector Switch

Gn19-12 Indoor High Voltage Disconnector, ISO9001 Passed Indoor Disconnector, CE Proved High Quality Disconnector, Disconnector Switch

Type:
High-voltage
Structure:
Three-column Disconnector
Installation:
Indoor High-voltage
Operation:
Manual
Grounding Mode:
Grounding
Movement Mode:
Plug-in Type

Quantity:
Availability:





Inquire Add to Basket

Product Description

GN19-12 INDOOR HIGH VOLTAGE DISCONNECTOR , ISO9001 PASSED INDOOR DISCONNECTOR , CE PROVED HIGH QUALITY DISCONNECTOR

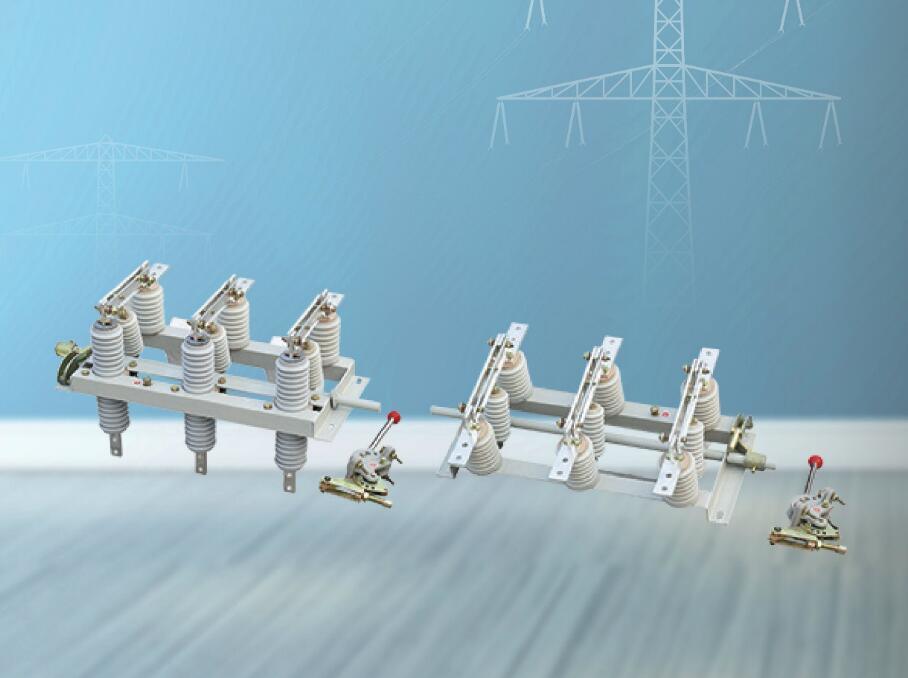

Indoor Disconnect Switch Model GN19-12

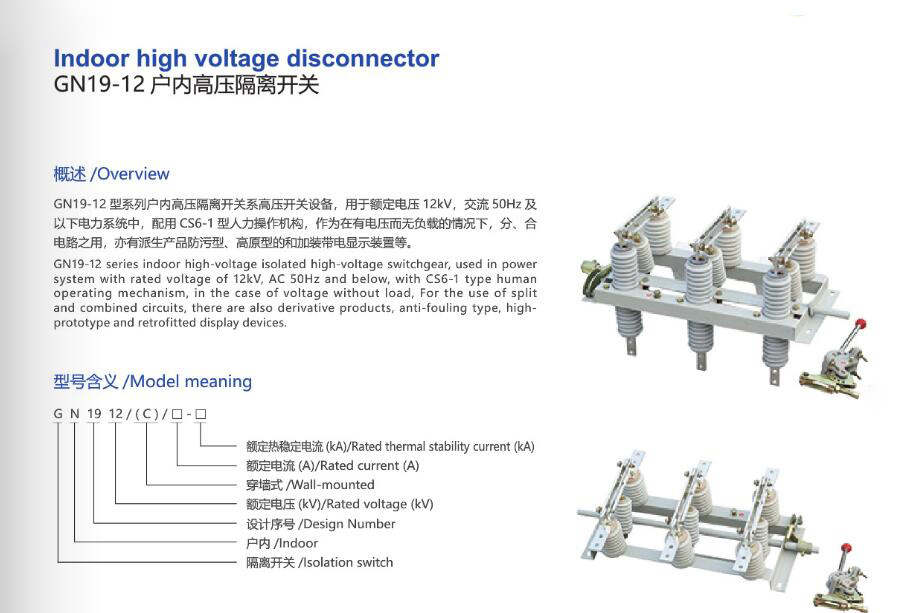

GN19-12 indoor HV disconnect switch applies to power system of rated voltage below 12KV, AC 50/60Hz. It is equipped with CS6-1 manual-operating mechanism and is used to break and make circuit under no-load. There are additional pollution type, high-altitude type and electrified display.
Gn19-12 Indoor High Voltage Disconnector, ISO9001 Passed Indoor Disconnector, CE Proved High Quality Disconnector, Disconnector Switch
