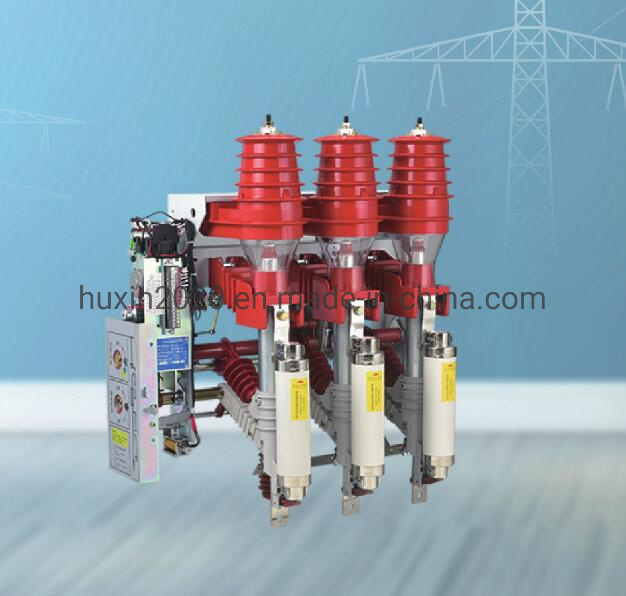

FK(R)N12-12 COMPRESSED AIR LOAD SWITCH , ISO9001 PASSED LOAD SWITCH , CE PROVED HIGH QUALITY LOAD SWITCH
FK(R)N12-12 and FK(R)N12-12R is of three phases indoor use AC high voltage load switch for breaking and making the circuit of 50Hz, 12KV system under rated loading, closed loop current, no-loading transformer, cable charged current and short circuit current. The load switch equipped with earth switch can withstand short circuit current, and m-ainly used in power distribution substation and industrial electrical equipment where three phase closed loop circuit or bottom power supply system for control and protection.
FK(R)N12-12 COMPRESSED AIR LOAD SWITCH , ISO9001 PASSED LOAD SWITCH , CE PROVED HIGH QUALITY LOAD SWITCH
FK(R)N12-12 and FK(R)N12-12R is of three phases indoor use AC high voltage load switch for breaking and making the circuit of 50Hz, 12KV system under rated loading, closed loop current, no-loading transformer, cable charged current and short circuit current. The load switch equipped with earth switch can withstand short circuit current, and m-ainly used in power distribution substation and industrial electrical equipment where three phase closed loop circuit or bottom power supply system for control and protection.
