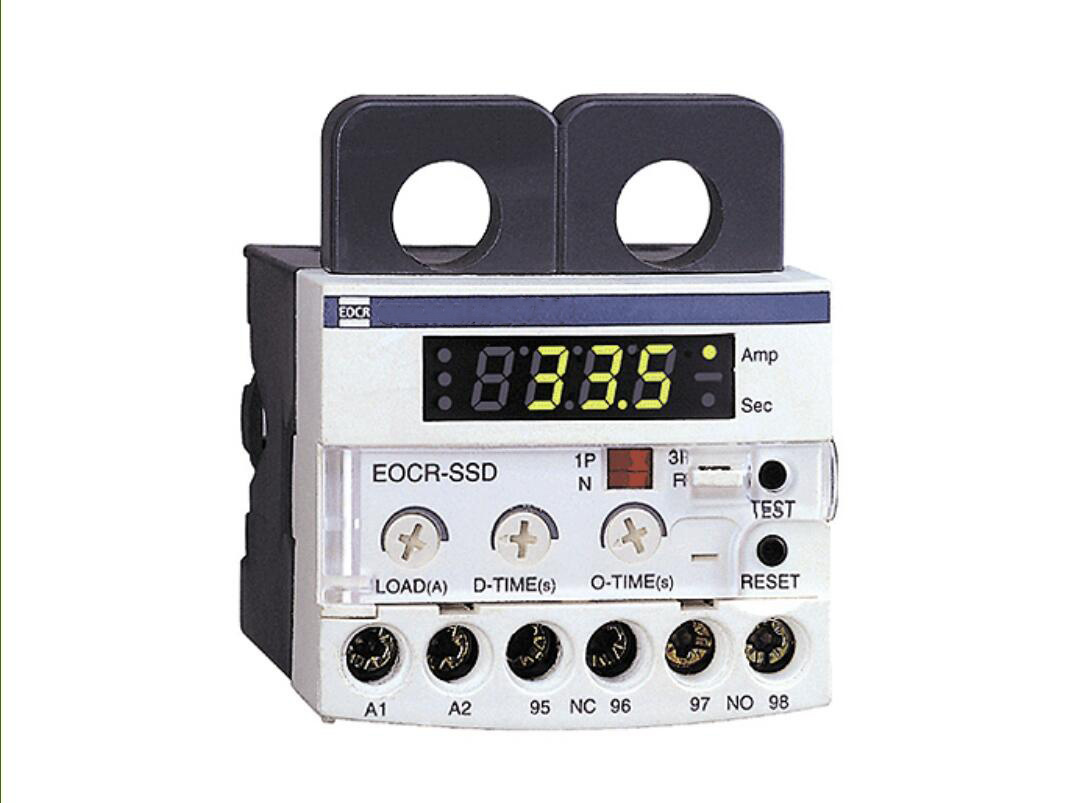

EOCR-SSD Digtal type Standard Over-Current Relay hiqh quality good electronic overy current relay , widely used in the control lines .
series overload relay is suitable for 50Hz/60Hz, rated voltage up 690~1000V, rated current 0.1~400A in main circuit of long time working. It is used to protect AC three-phase asynchronous motor against overload and open phase. This products conformity with IEC947-4, VDE0660, GB14048.4 standards.

The altituelde should be not higher than 2000m;
The ambient temperature: -25º C~55º C;
The relative humidity: When +25º C, the relative humidity of air should be not more than 90%.

Senies overload relay of thermal metal mode, tripping class is 60A;
Setting current continuous adjustable device;
Trip indicator;
Test button;
Reset button by hand operation and automatic reset button;
Have a pair of No and Nc insulation contact in electricity;
Mode of installation: Install independently or can plug in the AC contactor.
