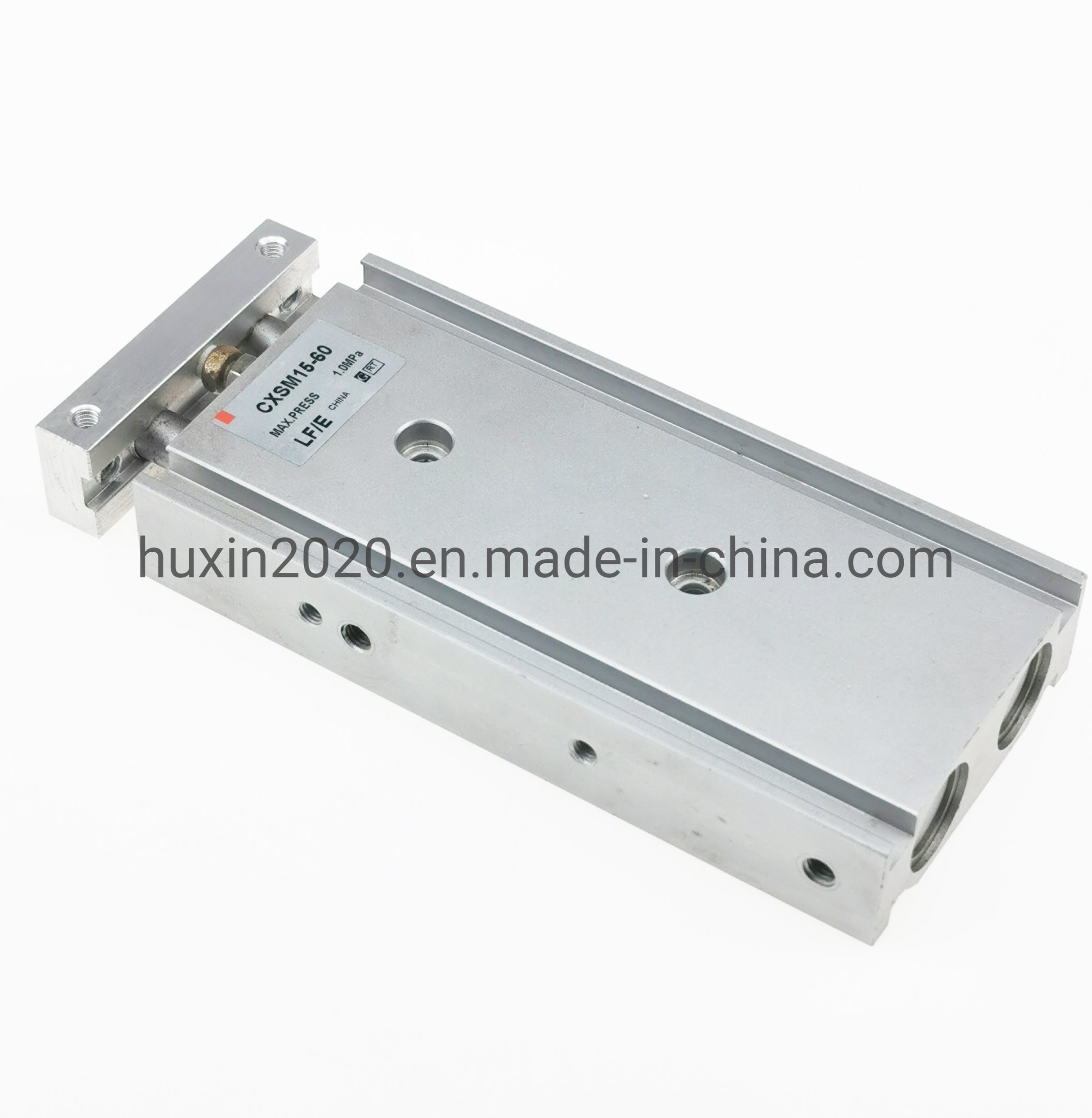

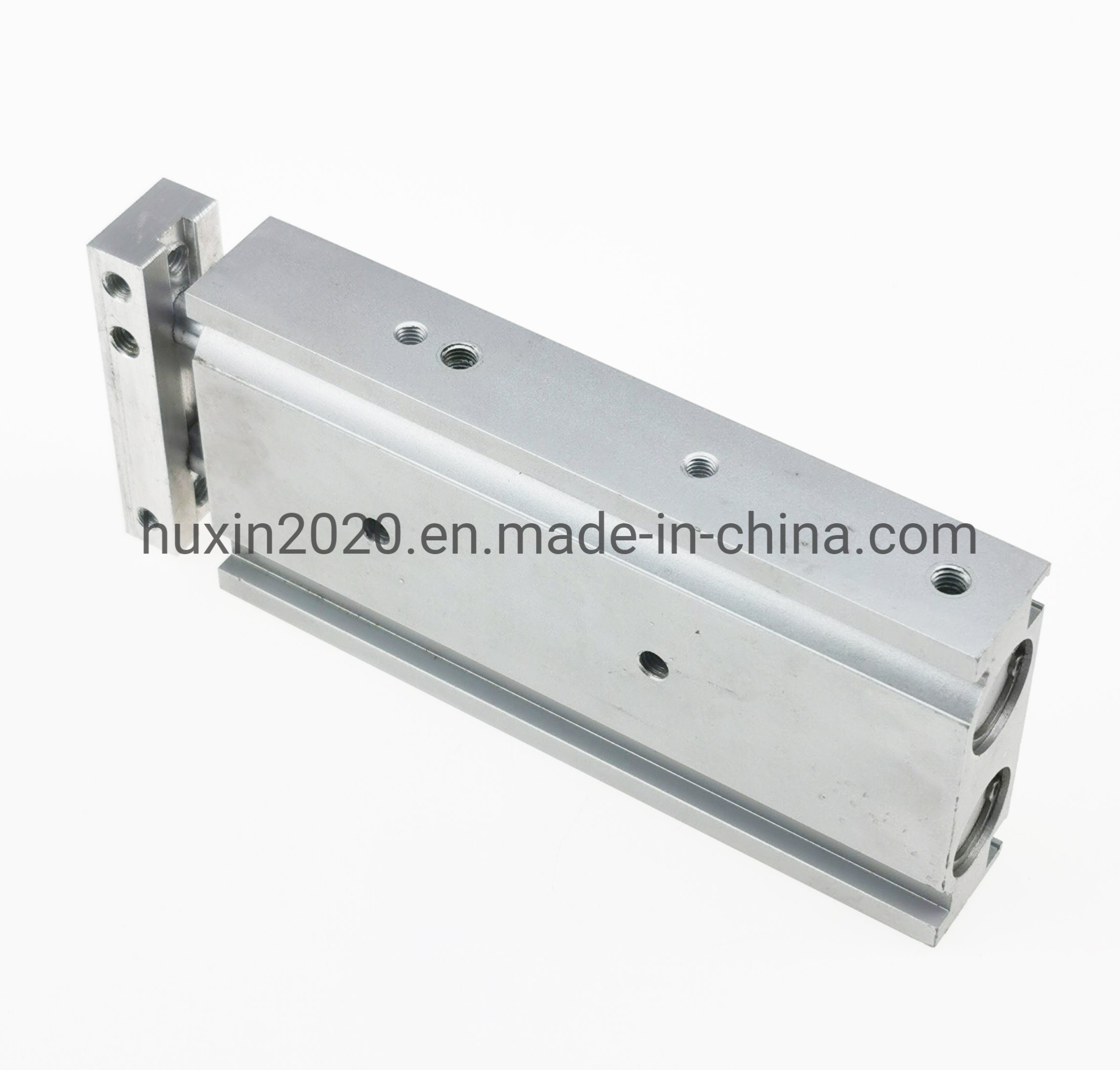

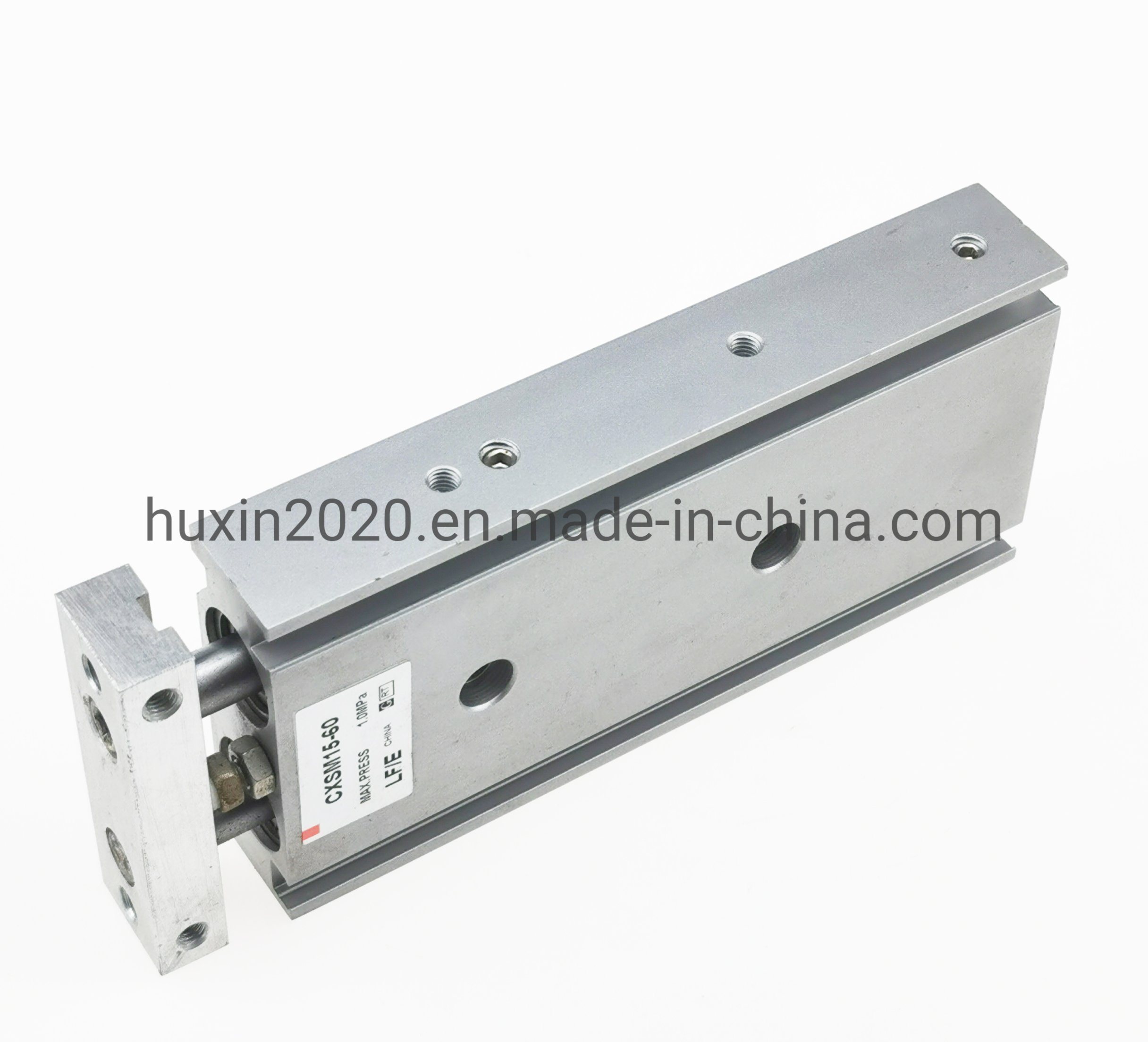

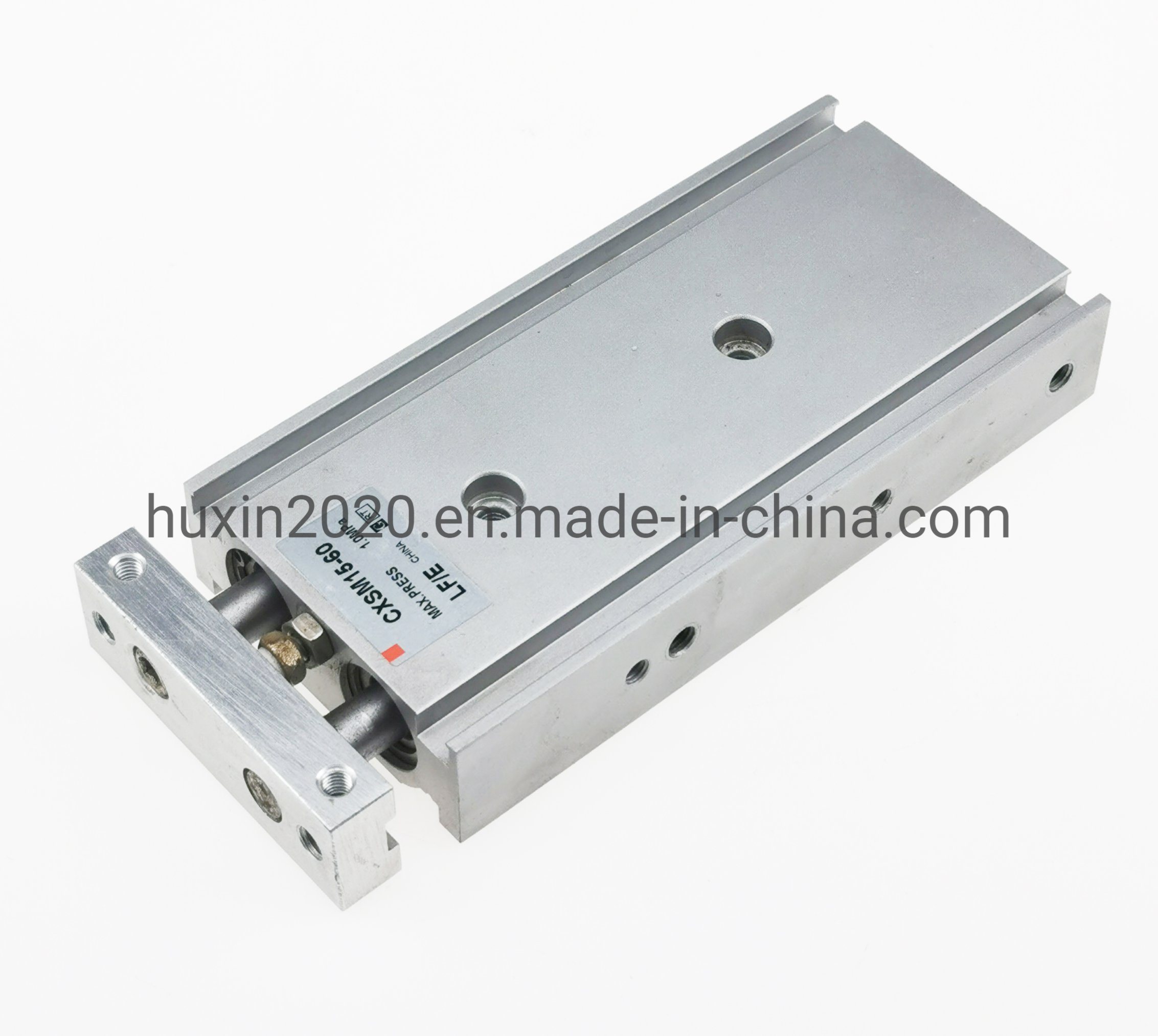

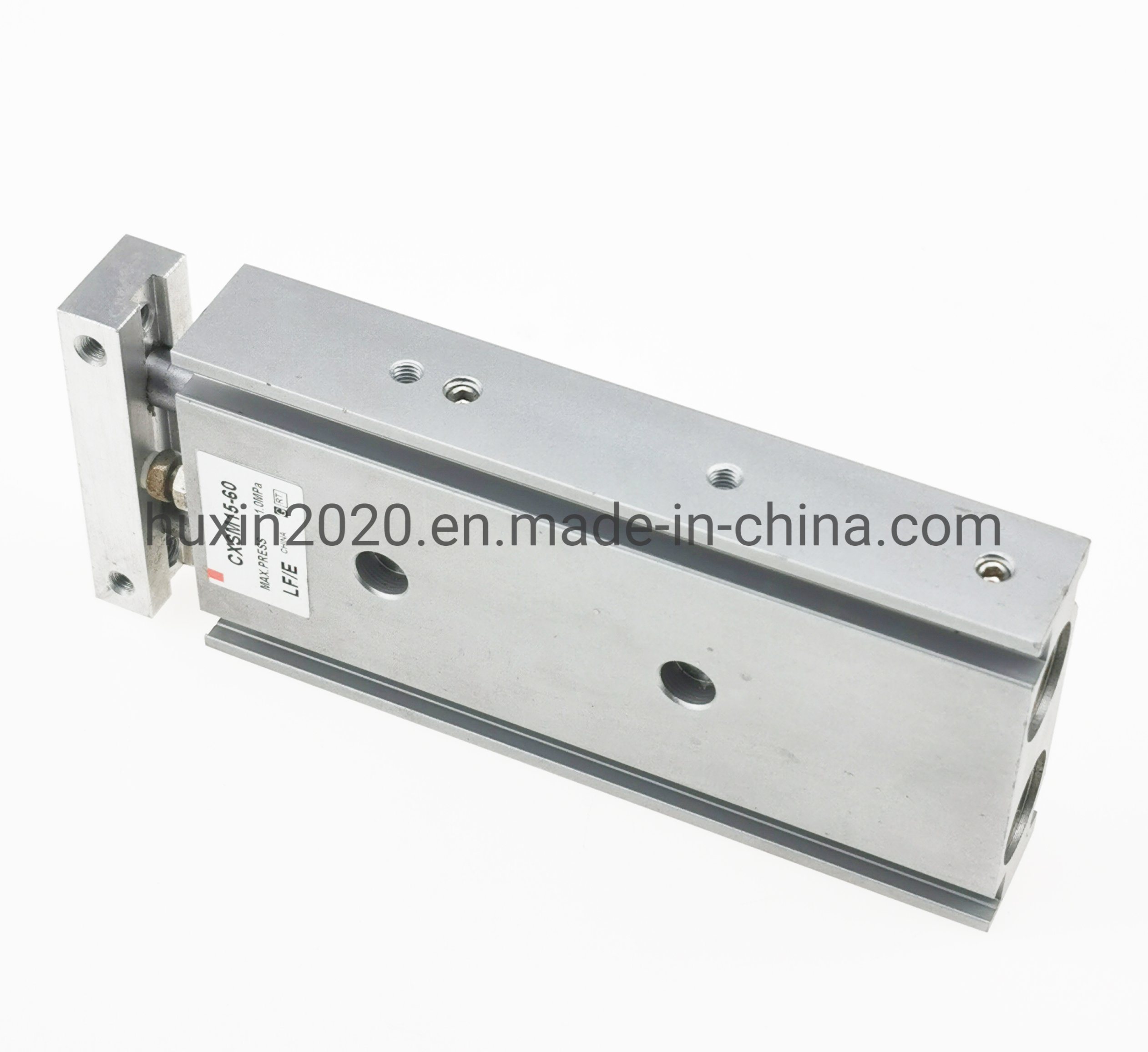

Cxsm15-10/20/30/40/50/60/70/75/100/125/150/175/200 Stroke Dual Rod Cylinder, Compact, Slide Bearing, Cxsjm Compact Cylinder, Pneumatic Compact Cylinder

  • Aluminum

  • Automation and Control, Robot

  • Piston Cylinder

  • Pneumatic

  • Standard

  • Double-acting Cylinder

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button


CXSM is available in six bore sizes and stroke lengths up to 100mm. This series is very compact and has a very accurate non-rotating specification. It is suited for accurate pick-and-place applications or light duty material handling. The CXS can be used with either reed or solid state switches. Available in clean room versions.
  • Dual rod cylinder, compact type
  • Slide bearing or ball bushing bearing

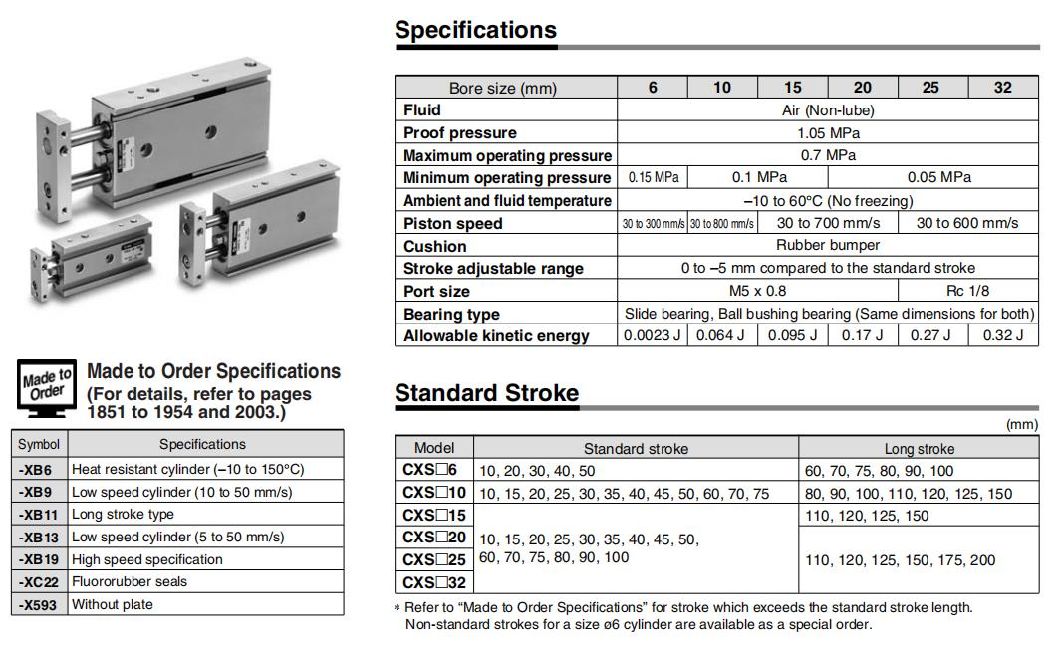

  • Bore size *: 6, 10, 15, 20, 25, 32
  • Standard strokes *: 10, 20, 30, 40, 50, 75, 100

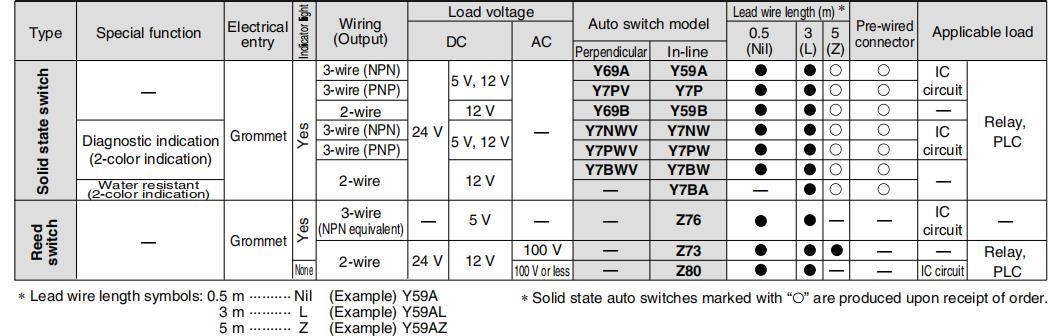

  • Auto switches available
  • Made to Order additionally released.

Cxsm15-10/20/30/40/50/60/70/75/100/125/150/175/200 Stroke Dual Rod Cylinder, Compact, Slide Bearing, Cxsjm Compact Cylinder, Pneumatic Compact Cylinder Cxsm15-10/20/30/40/50/60/70/75/100/125/150/175/200 Stroke Dual Rod Cylinder, Compact, Slide Bearing, Cxsjm Compact Cylinder, Pneumatic Compact Cylinder Cxsm15-10/20/30/40/50/60/70/75/100/125/150/175/200 Stroke Dual Rod Cylinder, Compact, Slide Bearing, Cxsjm Compact Cylinder, Pneumatic Compact Cylinder Cxsm15-10/20/30/40/50/60/70/75/100/125/150/175/200 Stroke Dual Rod Cylinder, Compact, Slide Bearing, Cxsjm Compact Cylinder, Pneumatic Compact Cylinder Cxsm15-10/20/30/40/50/60/70/75/100/125/150/175/200 Stroke Dual Rod Cylinder, Compact, Slide Bearing, Cxsjm Compact Cylinder, Pneumatic Compact Cylinder Cxsm15-10/20/30/40/50/60/70/75/100/125/150/175/200 Stroke Dual Rod Cylinder, Compact, Slide Bearing, Cxsjm Compact Cylinder, Pneumatic Compact Cylinder Cxsm15-10/20/30/40/50/60/70/75/100/125/150/175/200 Stroke Dual Rod Cylinder, Compact, Slide Bearing, Cxsjm Compact Cylinder, Pneumatic Compact Cylinder Cxsm15-10/20/30/40/50/60/70/75/100/125/150/175/200 Stroke Dual Rod Cylinder, Compact, Slide Bearing, Cxsjm Compact Cylinder, Pneumatic Compact Cylinder Cxsm15-10/20/30/40/50/60/70/75/100/125/150/175/200 Stroke Dual Rod Cylinder, Compact, Slide Bearing, Cxsjm Compact Cylinder, Pneumatic Compact Cylinder Cxsm15-10/20/30/40/50/60/70/75/100/125/150/175/200 Stroke Dual Rod Cylinder, Compact, Slide Bearing, Cxsjm Compact Cylinder, Pneumatic Compact Cylinder Cxsm15-10/20/30/40/50/60/70/75/100/125/150/175/200 Stroke Dual Rod Cylinder, Compact, Slide Bearing, Cxsjm Compact Cylinder, Pneumatic Compact Cylinder
