Cxsjm10-10/20/30/40/50/60/70/75/100/125/150/175/200 Stroke Dual Rod Cylinder, Compact, Slide Bearing, Cxsm Compact Cylinder, Pneumatic Compact Cylinder

Cxsjm10-10/20/30/40/50/60/70/75/100/125/150/175/200 Stroke Dual Rod Cylinder, Compact, Slide Bearing, Cxsm Compact Cylinder, Pneumatic Compact Cylinder

Material:
Aluminum
Usage:
Automation and Control, Robot
Structure:
Piston Cylinder
Power:
Pneumatic
Standard:
Standard
Pressure Direction:
Double-acting Cylinder

Quantity:
Availability:





Inquire Add to Basket

Product Description

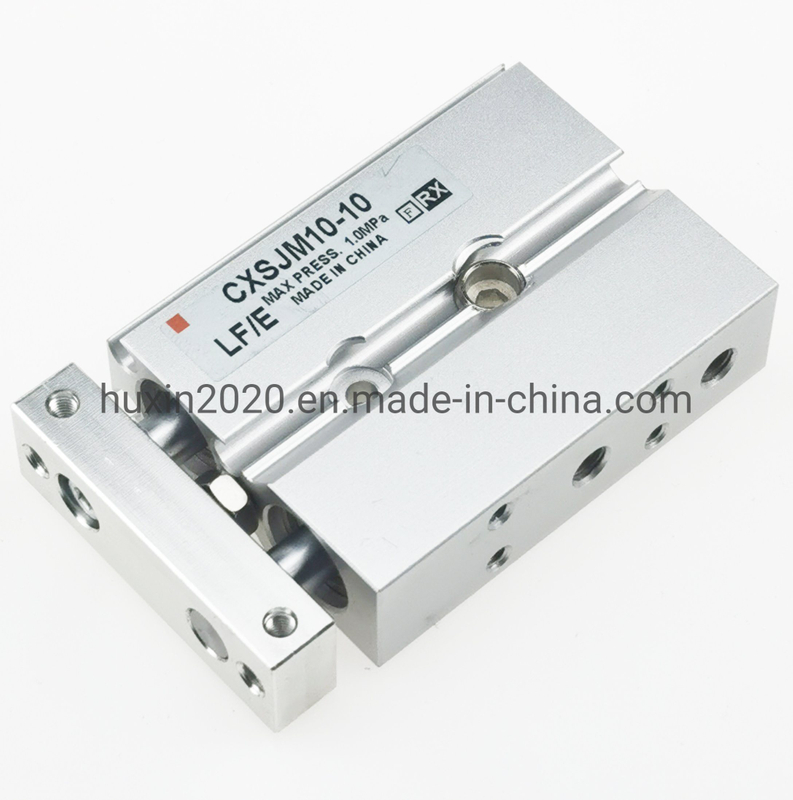

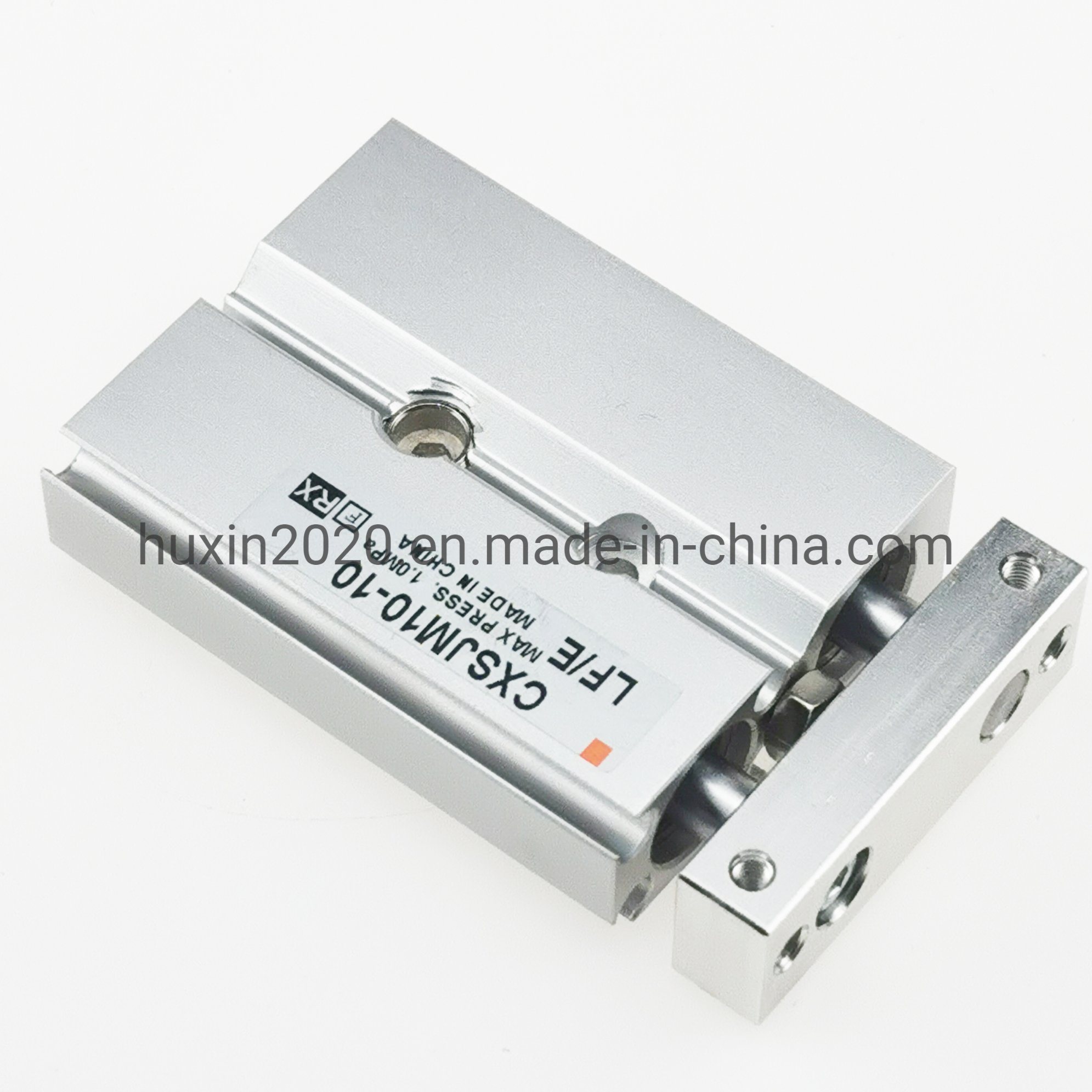

CXSJM is available in six bore sizes and stroke lengths up to 100mm. This series is very compact and has a very accurate non-rotating specification. It is suited for accurate pick-and-place applications or light duty material handling. The CXS can be used with either reed or solid state switches. Available in clean room versions.

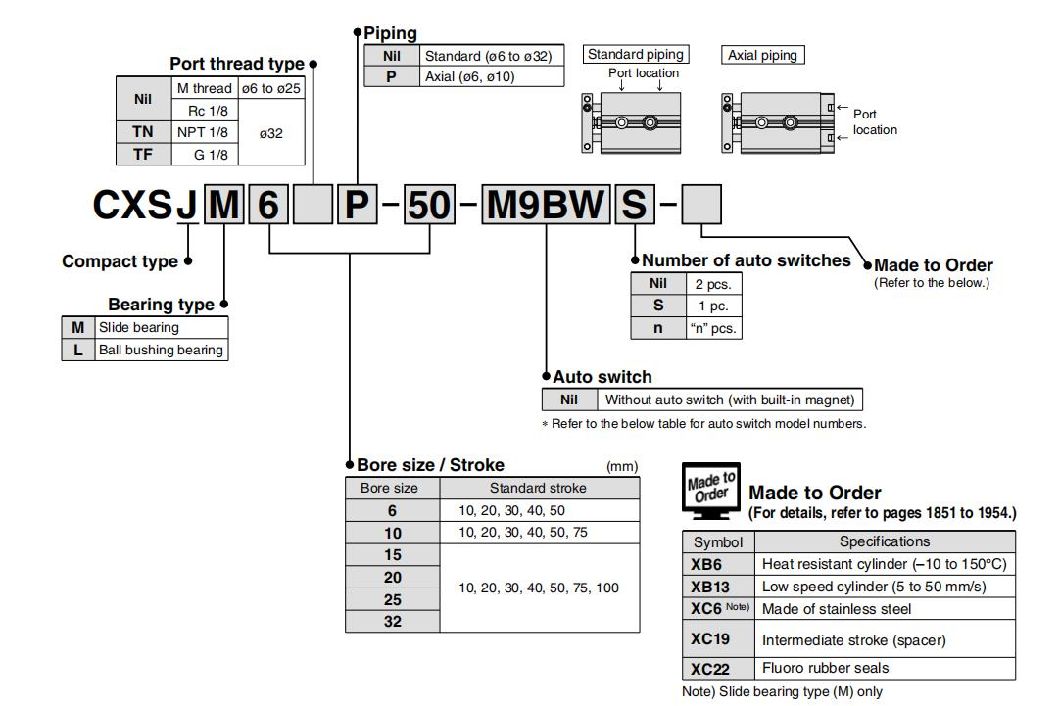

Dual rod cylinder, compact type
Slide bearing or ball bushing bearing

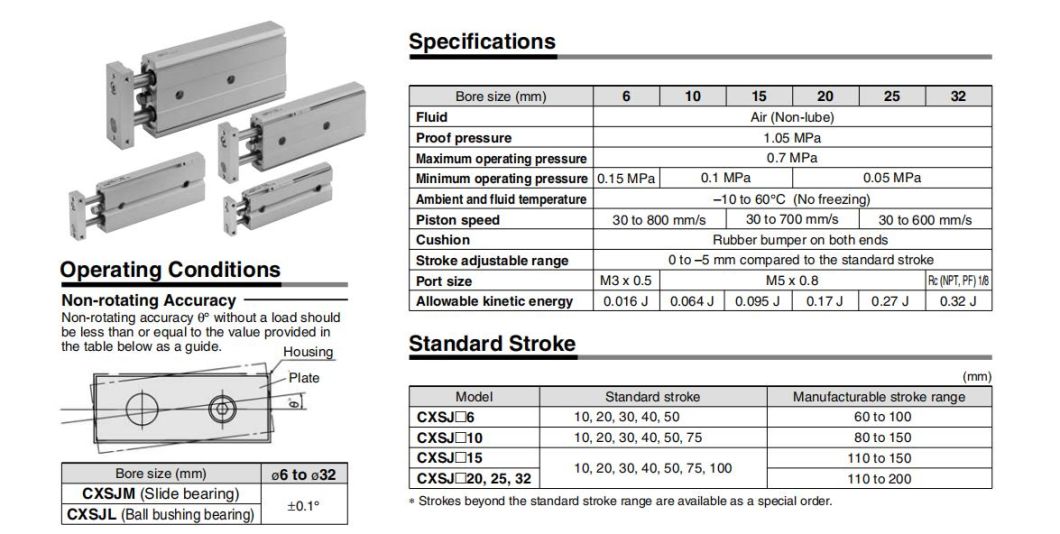

Bore size *: 6, 10, 15, 20, 25, 32
Standard strokes *: 10, 20, 30, 40, 50, 75, 100

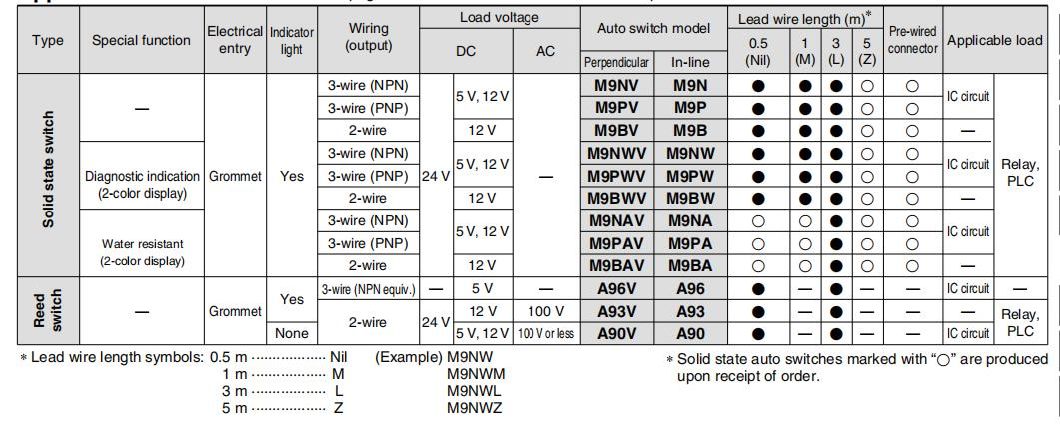

Auto switches available
Made to Order additionally released.
