Cdm2b25-25/50/75/100/125/1150/175/200 /225/250/275/300S/T Mini Cylinder, Cdm2b Series Single Actioin Single Rod Mini Cylinder, Double Action Cylinder

Cdm2b25-25/50/75/100/125/1150/175/200 /225/250/275/300S/T Mini Cylinder, Cdm2b Series Single Actioin Single Rod Mini Cylinder, Double Action Cylinder

Material:
Stainless Steel
Usage:
Automation and Control, Robot
Structure:
Piston Cylinder
Power:
Pneumatic
Standard:
Standard
Pressure Direction:
Double-acting Cylinder

Quantity:
Availability:





Inquire Add to Basket

Product Description

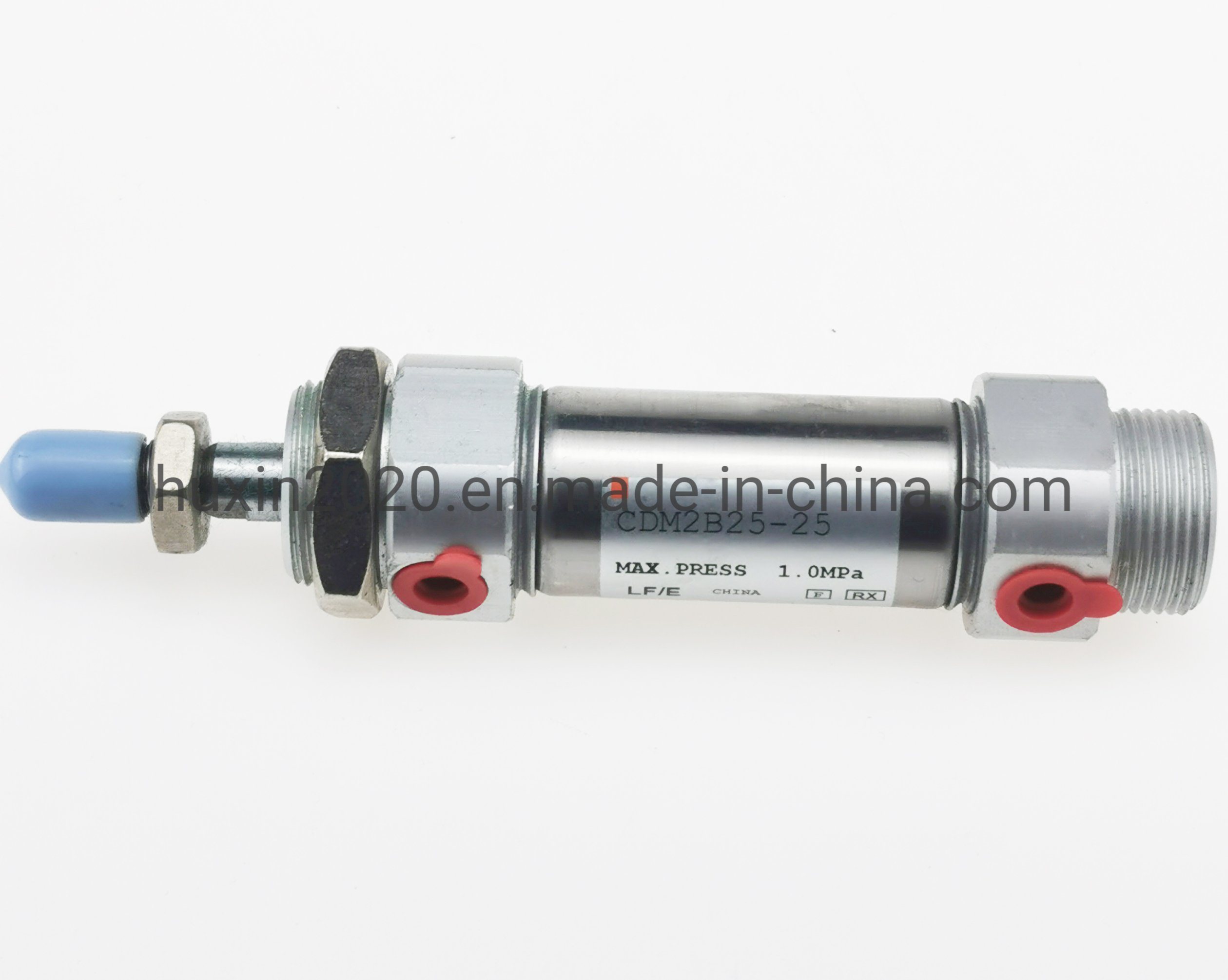

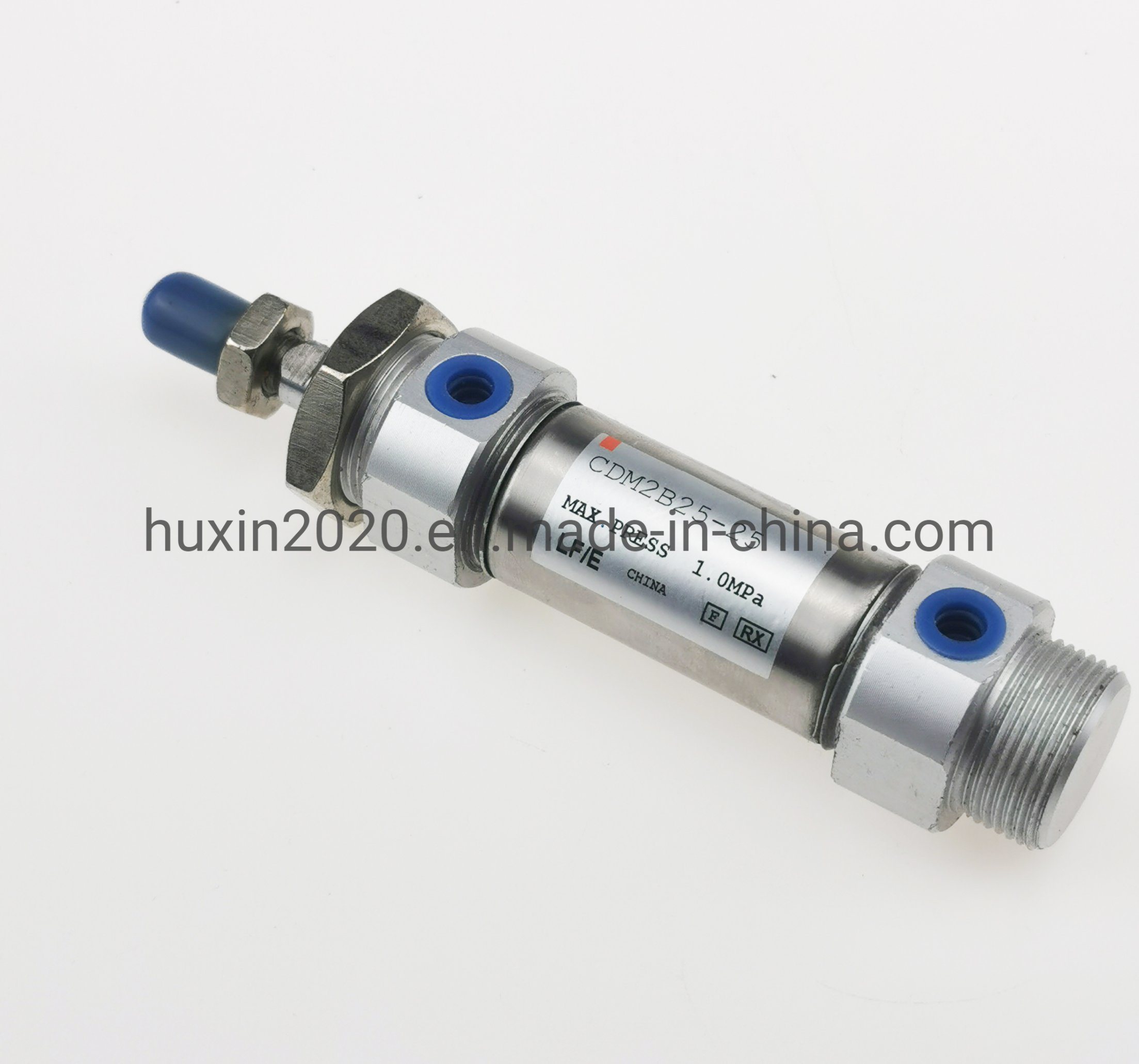

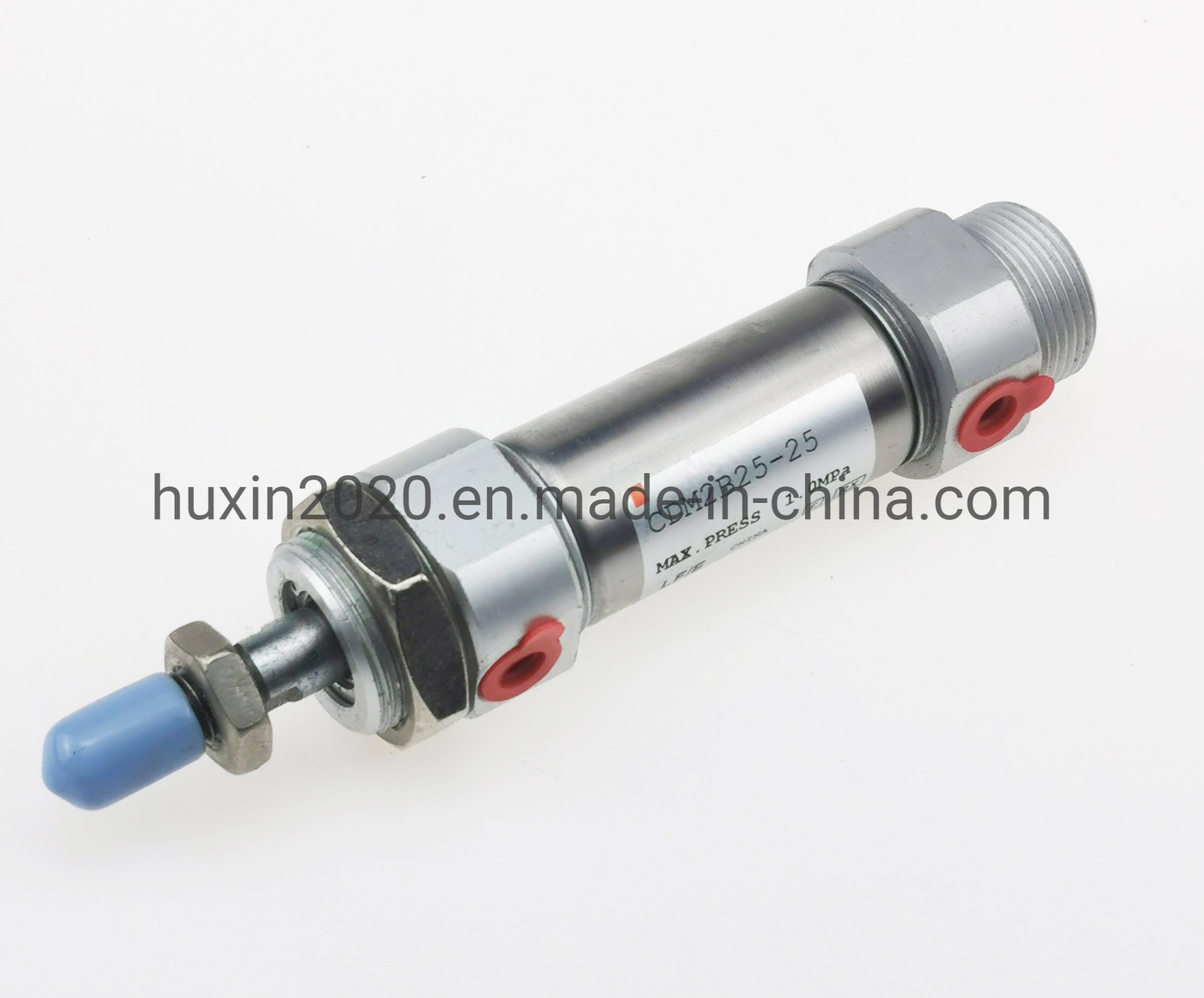

CDM2B stainless steel cylinders are compact, lightweight and offer high performance. Improved piston seal and rod seal greatly improve the units life. Rubber bumpers are standard. The CM2 series offers a variety of mounting options and is auto switch capable.

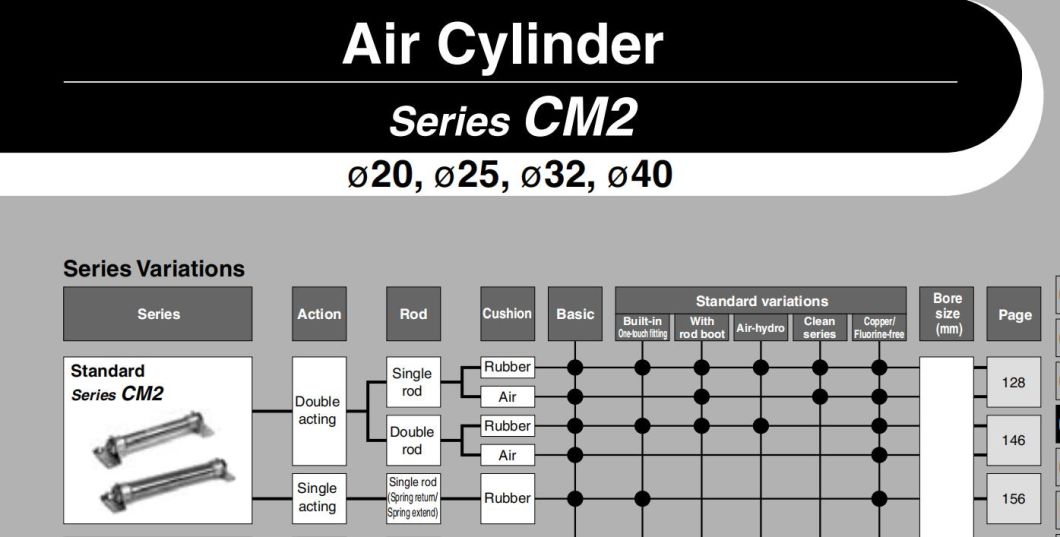

Double acting single rod

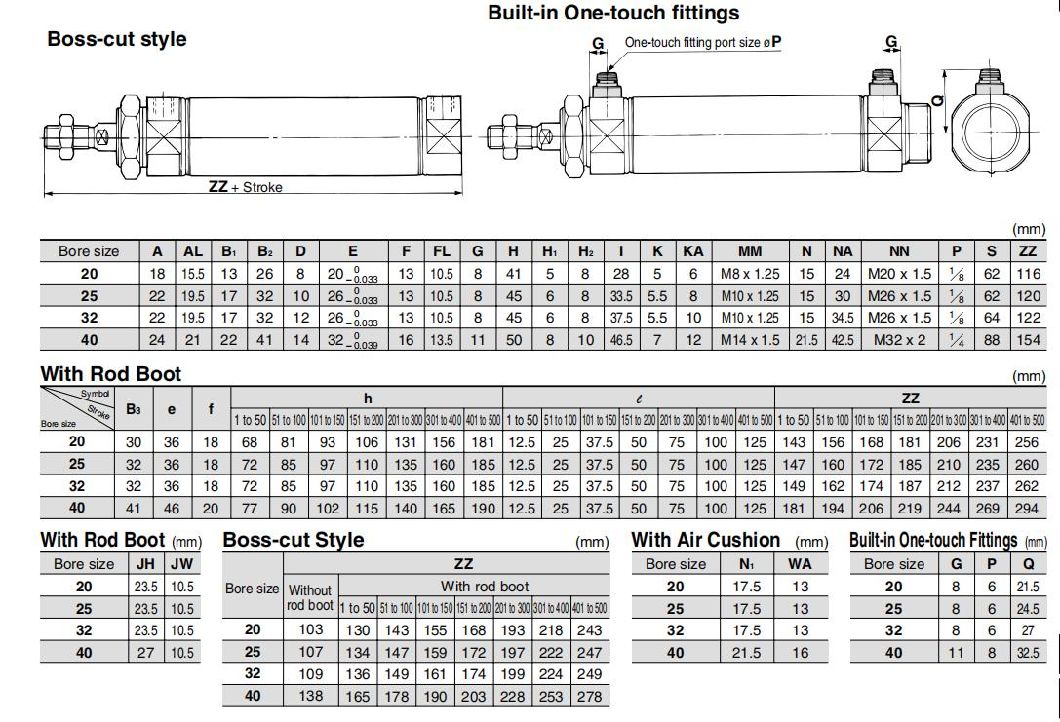

Bore sizes: 20, 25, 32, and 40 *
Strokes from 25mm through 500mm

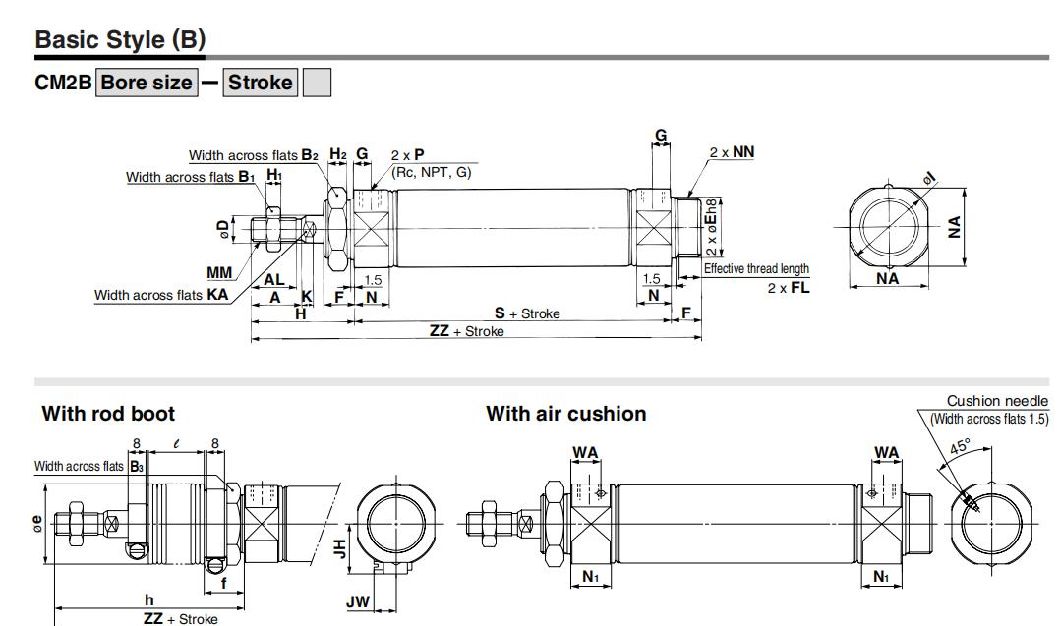

Mounts: basic, foot, front and rear flange, clevis, trunnion
With or without rod boot
Variety of switches and a variety of lead wire lengths
